Architecture & Theory

Architecture & Theory#

The Spiking Decision Transformer (SNN-DT) represents a paradigm shift from dense, matrix-multiplication-heavy Transformers to sparse, event-driven Spiking Neural Networks.

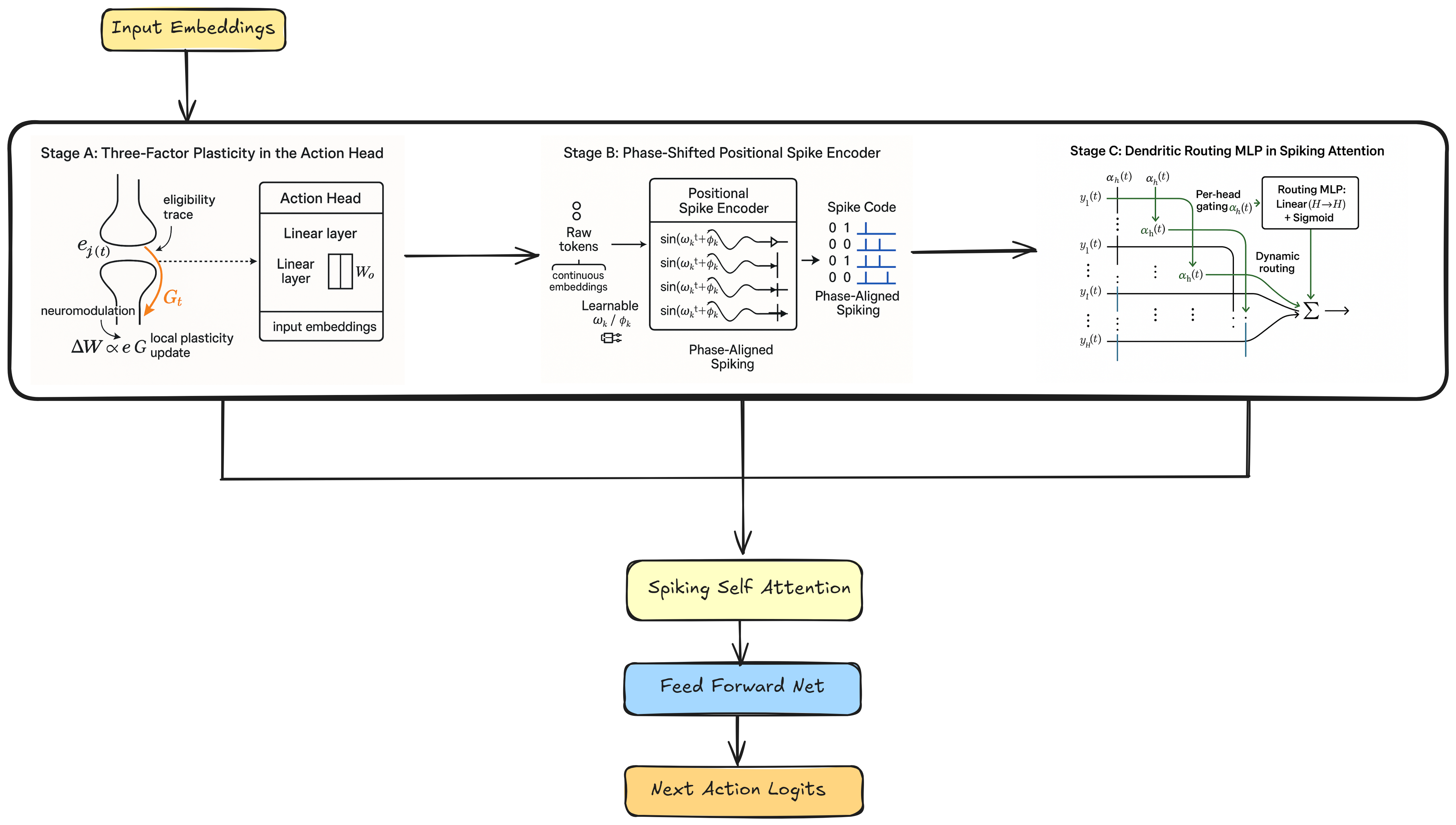

System Overview#

Traditional Decision Transformers (DTs) model trajectories \(\tau\) using causal masking and dense attention. SNN-DT preserves this sequence modeling capability but executes it in the spiking domain.

graph TD
    subgraph "SNN-DT Block"
    A[Spike Input] --> B[LIF Projection Q/K/V]
    B --> C[Spiking Self-Attention]
    C --> D[Dendritic Routing]
    D --> E[LIF Feed-Forward]
    E --> F[Output Spikes]
    end

    subgraph "Plasticity"
    G[Local 3-Factor Rule] -.-> B
    G -.-> E
    end

Spiking Self-Attention (SSA)#

We replace the dot-product attention with a spike-based operation.

  1. LIF Projections: Input spikes are projected via learnable weights into Query (\(Q\)), Key (\(K\)), and Value (\(V\)) spike trains.

  2. Attention formulation: Instead of \(softmax(\frac{QK^T}{\sqrt{d}})\), we use an accumulation of coincidence detections regulated by the firing thresholds of the postsynaptic neurons.

LIF Neuron Dynamics#

The membrane potential \(u_t\) evolves according to:

\[ u_t = \beta u_{t-1} + (1-\beta) W x_t - S_{t-1} V_{th} \]

where:

  • \(u_t\): Membrane potential at time \(t\).

  • \(\beta\): Decay factor (\(e^{-dt/\tau}\)).

  • \(S_t\): Discrete spike output (\(S_t \in \{0, 1\}\)).

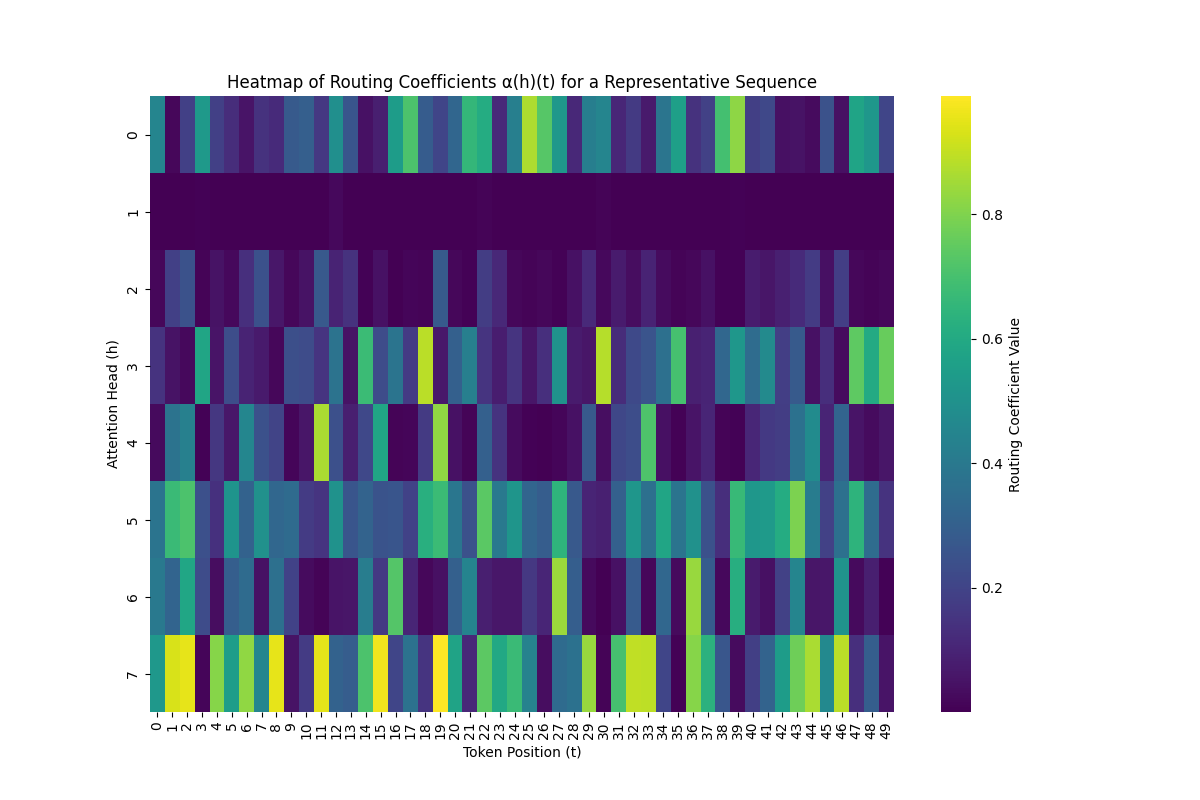

Dendritic Routing and Sparsity#

To minimize energy, SNN-DT employs specific mechanisms to induce sparsity:

  • Phase-Coding: Encodes values in the timing of spikes, reducing the total number of spikes needed to represent continuous values.

  • Dendritic Routing: A gating mechanism that dynamically prevents activity propagation to irrelevant heads or tokens, effectively “pruning” the computation graph on-the-fly.

Learning with Plasticity#

We use a surrogate gradient method for end-to-end training, augmented by local plasticity:

\[ \nabla W_{total} = \nabla W_{BPTT} + \lambda \cdot \Delta W_{STDP} \]

This hybrid approach stabilizes training and improves generalization to unseen tasks (e.g., changes in gravity or friction in Gym environments).
